Thomasaria vs. Pyramidalia conundrum in Devonian brachiopod systematics solved: An argument to formalize epitypification under the ICZN

ADAM T. HALAMSKI and ANDRZEJ BALIŃSKI

Halamski, A.T. and Baliński, A. 2019. Thomasaria vs. Pyramidalia conundrum in Devonian brachiopod systematics solved: An argument to formalize epitypification under the ICZN. Acta Palaeontologica Polonica 64 (2): 399–408.

Pyramidalia is a brachiopod genus with Spirifera simplex as the type species. Imprecise diagnosis and misidentification of the material studied in the original description resulted in a plethora of interpretations (a valid genus belonging either to the order Spiriferida or to the Spiriferinida; synonym of the spiriferide Thomasaria; synonym of Squamulariina or Cyrtinaella, both spiriferinides). To address this problem we designated the specimen GSM 6915 from Wolborough quarry near Newton Abbot (Devon, England; Givetian) as the lectotype of Spirifera simplex. We examined microstructure and internal characters of a topotypic specimen and found out that Spirifera simplex has an impunctate shell and is thus a spiriferide, not a spiriferinide. No significant differences in morphology or internal characters of Thomasaria and Pyramidalia can be found, so the latter is interpreted as a junior subjective synonym of the former. The procedure used in the present analysis is equivalent to the epitypification provided for in the ICN; formalisation of a similar procedure under the ICZN is recommended.

Key words: Brachiopoda, Pyramidalia, Thomasaria, epitypification, ICZN, Devonian, UK, England.

Adam T. Halamski [ath@twarda.pan.pl] and Andrzej Baliński [balinski@twarda.pan.pl], Institute of Paleobiology, Polish Academy of Sciences, ul. Twarda 51/55, 00-818 Warszawa, Poland.

Received 1 February 2019, accepted 17 April 2019, available online 21 May 2019.

Introduction

The brachiopod genus Pyramidalia Nalivkin, 1947 was pro­posed with Spirifera simplex Phillips, 1841 as the type species. However, Nalivkin (1947) did not examine the type material of S. simplex from the Middle Devonian of south-western England, assuming instead that his material from the Frasnian of the Urals and central Asia was conspecific with the former. Moreover, the diagnosis included neither the shell microstructure nor a detailed description of internal characters. This resulted in a plethora of interpretations of Pyramidalia, the genus being considered as belonging either to the order Spiriferida or to the order Spiriferinida, and in each case either valid or synonymous with other previously established taxa. The only way of fixing the application of the generic name Pyramidalia is to investigate the type material of its type species. The necessity of examining the specimens described by Phillips (1841) has been stressed several times (Drot 1964: 79; Baliński 2006: 674; Mottequin 2008: 516; García-Alcalde 2010: 58; Halamski and Baliński 2013: 293) but never conducted heretofore; this is done herein.

The questions of the systematic position of Pyramidalia and of the correct application of the genus name are of considerable importance, insofar as brachiopods identified as Spirifera simplex, Pyramidalia, or Thomasaria (the two latter names are synonymous, as shown below) were reported from the Middle and Upper Devonian of several regions of four continents (see below) and sometimes even used as index fossils (Warren and Stelck 1956; Webby 1961: 538, 1964: 3; McLaren et al. 1962). However, the object of the present paper is solely Spirifera simplex from south-western England and the correct delimitation of the genus name Pyramidalia, whereas the revision of conspecific brachiopods from other regions and of other possibly congeneric species is postponed to a further study.

Institutional abbreviations.—GSM, Geological Society Mu­seum (= Keyworth Bio­stratigraphy Museum), British Geo­logical Survey, Key­worth, UK; NHMUK, British Museum (Natural History), now Natural History Museum, London, UK; OUMNH, Oxford University Museum of Natural His­tory, Oxford, UK; SM, Sedgwick Museum of Earth Sciences, Cam­bridge, UK; TCD, Trinity College, Dublin, Ireland.

Other abbreviations.—ICN, International Code of Nomen­clature for algae, fungi, and plants; ICZN, International Code of Zoological Nomenclature.

Historical background

The original description and material of John Phillips.—The original description of Spirifera simplex was given by Phillips (1841: 71) on the basis of brachiopods from Plymouth and Newton in South Devon. Devonian rocks cropping out in Cornwall, Devon, and Somerset in south-­western England (Fig. 1) belong to an upper Palaeo­zoic massif forming part of the Variscan orogen of western and central Europe (Leveridge and Hartley 2006; Shail and Leveridge 2009). More precisely, the discussed area belongs to the Rhenohercynian Zone that lay at or near the southern passive margin of the Eastern Avalonia plate (Franke 2000). In terms of palaeogeography this corres­ponds to a location south of the Old Red Sandstone Continent (Lau­russia), more exactly south-western of its southern tip formed by the Welsh Massif and the London-Brabant massif (Ziegler 1982: map 7; Leveridge and Shail 2011 and references therein). The Givetian palaeolandscape may be reconstructed as a segmented marine shelf with limestone reefs on basement highs (Shail and Leveridge 2009: 143). Middle Devonian strata include slate facies cropping out mostly in Cornwall and limestone in South Devon (House and Selwood 1966).


Halam-01.tif

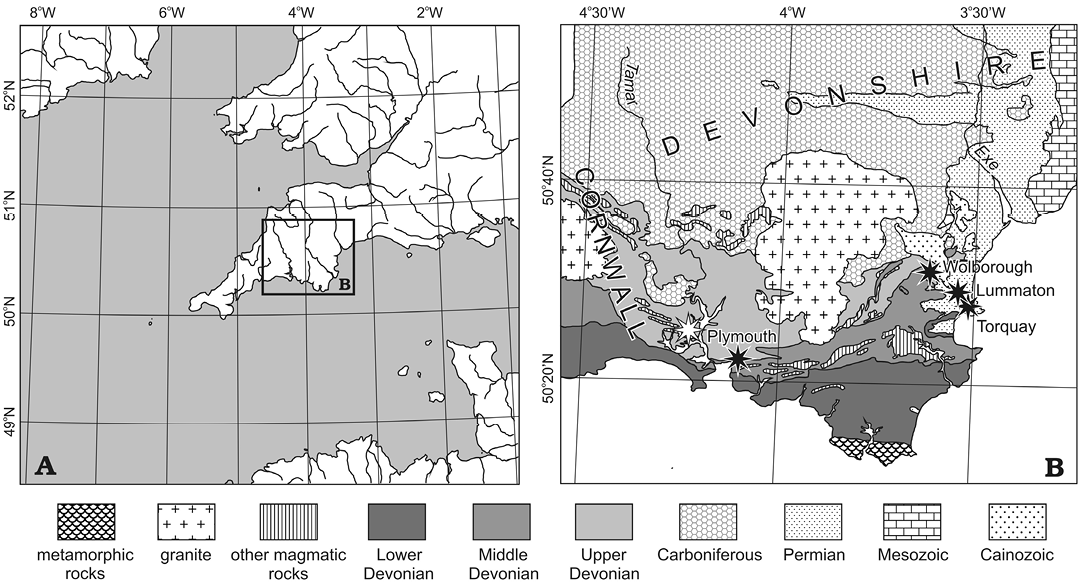

Fig. 1. A. Geographical location of the study area in north-western Europe. B. Geological map of eastern Cornwall and southern Devon (Devonian after House and Selwood 1966, otherwise simplified and modified after British Geological Survey 1957). Black asterisks show fossil localities mentioned in the text. The white asterisk shows the presumed position of “Port Stephens” (see text for further explanation).


The type series of Spirifera simplex, like always in the case of species established before 2000 (Art. 72.4.1 of the ICZN), consists of all specimens that can be proven to be known to the author earlier than the publication of the name (here 1841) and identified as the discussed taxon. Four specimens possibly referable to Phillips’s collection could be traced in the GSM. No Phillips material could be traced in the NHMUK (Sarah Long, personal communication 2002) or in the OUMNH (Derek Siveter, personal communication 2002).

The specimens GSM 6915, GSM 6916, GSM 50930, and GSM 50931 are recorded as coming from Newton and “presented by R.A. Godwin-Austen Esq.”, but any external evidence (i.e., documents) that they were used by Phillips is lacking. Such an regrettable situation is unfortunately by no means exceptional, as John Phillips (see biographical note by Bonne 1896) did not make “reference to precise localities. There has been much guess work on this subject, but nothing absolutely conclusive.” (Howard Brunton, personal communication 2002).

On the other hand, in the original description of Spirifera simplex (Phillips, 1841) five specimens are illustrated (Phil­lips 1841: pl. 29: 124αa–d; pl. 60: 124α) and thus belong undoubtedly to the type series. The last specimen (i.e., Phillips 1841: pl. 60: 124α) can be identified with GSM 6915, whereas the other ones could not be found in any existing collections.

The provenance of GSM 6915 is described in some detail: “Mr. Austen has furnished me with more perfect specimens, one of which is represented on pl. 60, fig. 124” (Phillips 1841: 71). House and Selwood (1966: 85), when re-illustrating the discussed specimen, supposed erroneously that it had originated “probably from the Plymouth limestone”. However, the English geologist Robert Alfred Cloyne Godwin-Austen (see biographical note by Boase 1890) collected the Devonian fauna in Newton Bushel (Phillips 1841: 203; Davidson 1864: 9).

The specimen GSM 6915, coming thus in all probability from Newton Bushel, is chosen herein as the lectotype of Spirifera simplex Phillips, 1841. It might be objected that the second specimen is said to come to Phillips “since the figures were drawn” (Phillips 1841: 71), this is why it is figured on the last plate. However, it must be stressed that the entire book was printed simultaneously (August 1841 according to Sherborn 1922: lxiii; the date 1839 given ibid. p. cii is a lapsus calami), so both specimens belong to the type series and have equal status.

According to House and Selwood (1966: 57), Phillips’s “Newton Bushel” corresponds to Wolborough quarry (SX 850706; spelt Woolborough by Davidson 1864: 46) near Newton Abbot in Devon. The Wolborough quarry is an outcrop of coarse, subordinately dolomitised limestone belonging to a local stratigraphic unit called East Ogwell Limestone (Selwood et al. 1984: 30). Descriptions of the quarry are given by Scrutton (1968: 185–186), Selwood et al. (1984: 49–50) and House (2002: 281–282). According to Selwood et al. (1984: 174), conodonts allow dating the strata cropping out in the quarry to the Polygnathus varcus Zone, but in this case a better dating may be obtained on the basis of a rich goniatite fauna (Maenioceras molarium Zone; House 2002: 288–289). Brachiopods from Wolborough were included in the monograph by Whidborne (1893). Fossil fauna from this locality is summarised by Ussher (1913: 22–24); 53 brachiopod taxa are listed along with numerous molluscs, arthropods, crinoids and less diverse corals and bryozoans. The only newer treatment of brachiopods is that of Mimatrypa by Copper (1965).

History of the name Pyramidalia Nalivkin, 1947.—The genus Pyramidalia was introduced by Nalivkin (1947: 124) as a representative of the (then widely understood) family Spiriferidae King, 1846 closest to “Reticularia Martin” (recte: Reticularia M’Coy, 1844) and Eoreticularia Nalivkin in Fredericks, 1924. The type species of the new genus was given as Spirifer simplex Phillips, 1841 (lapsus calami pro Spirifera simplex). However, the material on which the description was based was not topotypic (i.e., not from the Middle Devonian of south-western England), but came from the Frasnian (Upper Devonian) of the Urals, central Asia, and Kuznetsk Basin (Nalivkin 1947: 125). According to Oleneva (2006: 421), the only shell illustrated by Nalivkin (1947: pl. 31: 4; copy of Nalivkin 1930: pl. 10: 5) as Pyramidalia simplex comes from the Frasnian of the Alai Ridge and represents another species, namely Thomasaria rotunda Ole­neva, 2006.

Vandercammen (1957) correctly interpreted Spirifera simplex as a reticularioid, but misapplied the generic name Plectospirifer Grabau, 1931 thereto. As a matter of fact, Plectospirifer is an athyridide (a junior subjective synonym of Athyrisina Hayasaka in Yabe and Hayasaka, 1920; Hou 1959: 457; Alvarez and Rong 2002: 1507; Hou et al. 2017: 433). It may also be noted that, according to Mottequin (2008: 512), the material described by Vandercammen (1957) as Plectospirifer simplex partly represents Thomasaria cf. altumbona and partly another more distantly related species.

Baliński (1979: 71; 2006: 674), Brice (1985: 145), Ole­neva (2006: 419), Halamski and Baliński (2013: 293), and Alek­seeva et al. (2018) considered Pyramidalia (with various degrees of confidence) as a junior subjective synonym of Tho­masaria Stainbrook, 1945, the latter a representative of the superfamily Reticularioidea Waagen, 1883 either within the Reticulariidae Waagen, 1883 or Thomasariidae Cooper and Dutro, 1982. It might be of interest to note that Vander­cammen (1956) misinterpreted Thomasaria as an ambocoelioid.

Drot (1964: 78–79) and García-Alcalde (2010: 58) consi­dered Pyramidalia as a valid genus within the family Reti­culariidae Waagen, 1883.

A very different line of interpretation of Pyramidalia started with Ivanova (1959: 62) who included the discussed genus into the family Cyrtinidae Fredericks, 1911 (in a synoptic classification, without any comment). Such a classification was adopted by Ivanova in further works (Ivanova 1960: 279; 1962: 119; 1972: 37). Also Biernat (1966: 136) treated Pyramidalia as a valid genus within the family Cyr­ti­nidae.

Pitrat (in Boucot et al. 1965: H678) proposed to treat Pyramidalia as a synonym of Cyrtinaella Fredericks, 1916 (family Cyrtinidae). This was followed by Sapelnikov and Mizens (2000: 125), although it should be noted that, according to Oleneva (2006), Cyrtinaella simplex sensu Sapel­­nikov and Mizens (2000) represents Pyramina oskolensis Ljas­chenko, 1969 (family Ambocoeliidae George, 1931). Carter et al. (1994) and Johnson (2006: 1882) considered Pyramidalia as a junior subjective synonym of Squamulariina Fredericks, 1916 (family Cyrtinidae).

To sum up, excluding obvious nomenclatural misapplications (Plectospirifer) and attributions to genera formerly treated more widely than at present (Spirifer, Reticularia, Eoreticularia, Cyrtia; see the synonymy in Vandercammen 1957: 12), Pyramidalia was considered: (i) a valid genus within the order Spiriferida (Drot 1964; García-Alcalde 2010); (ii) a valid genus within the order Spiriferinida as presently circumscribed (Ivanova 1959, 1960, 1962, 1972; Hou 1963; Biernat 1966); (iii) a synonym of Thomasaria within the Spiriferida (Baliński 1979; Brice 1985; Oleneva 2006; Halamski and Baliński 2013; Alekseeva et al. 2018); (iv) a synonym of either Squamulariina (Carter et al. 1994; Johnson 2006) or Cyrtinaella (Pitrat in Boucot et al. 1965; Sapelnikov and Mizens 2000) within the Spiriferinida as presently circumscribed.

Material and methods

The quarry at Wolborough has been inactive for several years (already inaccessible to Copper 1965: 360). Brachiopods coming from this quarry were traced in two collections, in GSM and in NHMUK. The collection of the GSM is very small and includes only historical specimens than cannot be sectioned. Specimens in the NHM have thus been the only ones that could be chosen for the purpose of the present study.

The specimen NHMUK PI B 2807 (Newton, coll. J.E. Lee, presented to the Museum in October 1885) has been chosen for serial sections because: (i) its origin from Wolborough (Newton Bushel) is undoubted (not always so in 19th century collections); (ii) it is neither a type nor a figured specimen. The internal structures of this shell were investigated using the standard technique of serial sections and acetate peels. Due to the pyramidal shape of the shell, each valve was sectioned separately. The acetate peels were mounted between microscope slides and photographed under a binocular microscope. The photographs were imported to CorelDRAW software and internal details were drawn using a digital drawing tablet.

Systematic palaeontology

Phylum Brachiopoda Duméril, 1805

Subphylum Rhynchonelliformea Williams, Carlson, Brunton, Holmer, and Popov, 1996

Class Rhynchonellata Williams, Carlson, Brunton, Holmer, and Popov, 1996

Order Spiriferida Waagen, 1883

Family Thomasariidae Cooper and Dutro, 1982

Stratigraphic and geographic range.—Middle to Late Devo­nian, Eifelian?, Givetian to Frasnian (corrected herein).

Genus Thomasaria Stainbrook, 1945

= Pyramidalia Nalivkin, 1947

Type species: Thomasaria altumbona Stainbrook, 1945; Iowa, USA; Independence Shale, upper Frasnian (after Day and Witzke 2017), Upper Devonian.

Remarks.Pyramidalia Nalivkin, 1947 with type species Spirifera simplex Phillips, 1841 is a synonym of Thomasaria. As shown below, the shell of Spirifera simplex is impunctate (Fig. 2E6), Pyramidalia is thus a spiriferide, not a spiriferinide (contrary to, among others, Ivanova 1959; Pitrat in Boucot et al. 1965; Johnson 2006). Morphology and internal structures of Spirifera simplex and Thomasaria are very similar. More precisely, Spirifera simplex is in accordance with the diagnosis of Thomasaria given by Johnson (2006: 1864), except for the cardinal angles that may be either acute (Fig. 2C1) or rounded (Fig. 2D1). It should be noted, however, that the cardinal process was not observed due to preservational condition of the sectioned specimen of Spirifera simplex. Moreover, the internal morphology of the dorsal valve is known solely for Thomasaria warreni Cooper and Dutro, 1982 from the Frasnian of New Mexico (Cooper and Dutro 1982: pl. 40: 26–27; pl. 43: 1–9) and for Thomasaria cf. altumbona from the Frasnian of Belgium (Mottequin 2008: fig. 56). The dorsal valve of T. altumbona has been sectioned neither by Stainbrook (1945) nor by Pitrat (1965), Johnson (2006), or any subsequent author. Notwithstanding these minor issues, the most satisfying solution is clearly treating Pyramidalia as a junior subjective synonym of Thomasaria, following Baliński (1979), Brice (1985), Oleneva (2006), Halamski and Baliński (2013), and Alekseeva et al. (2018).

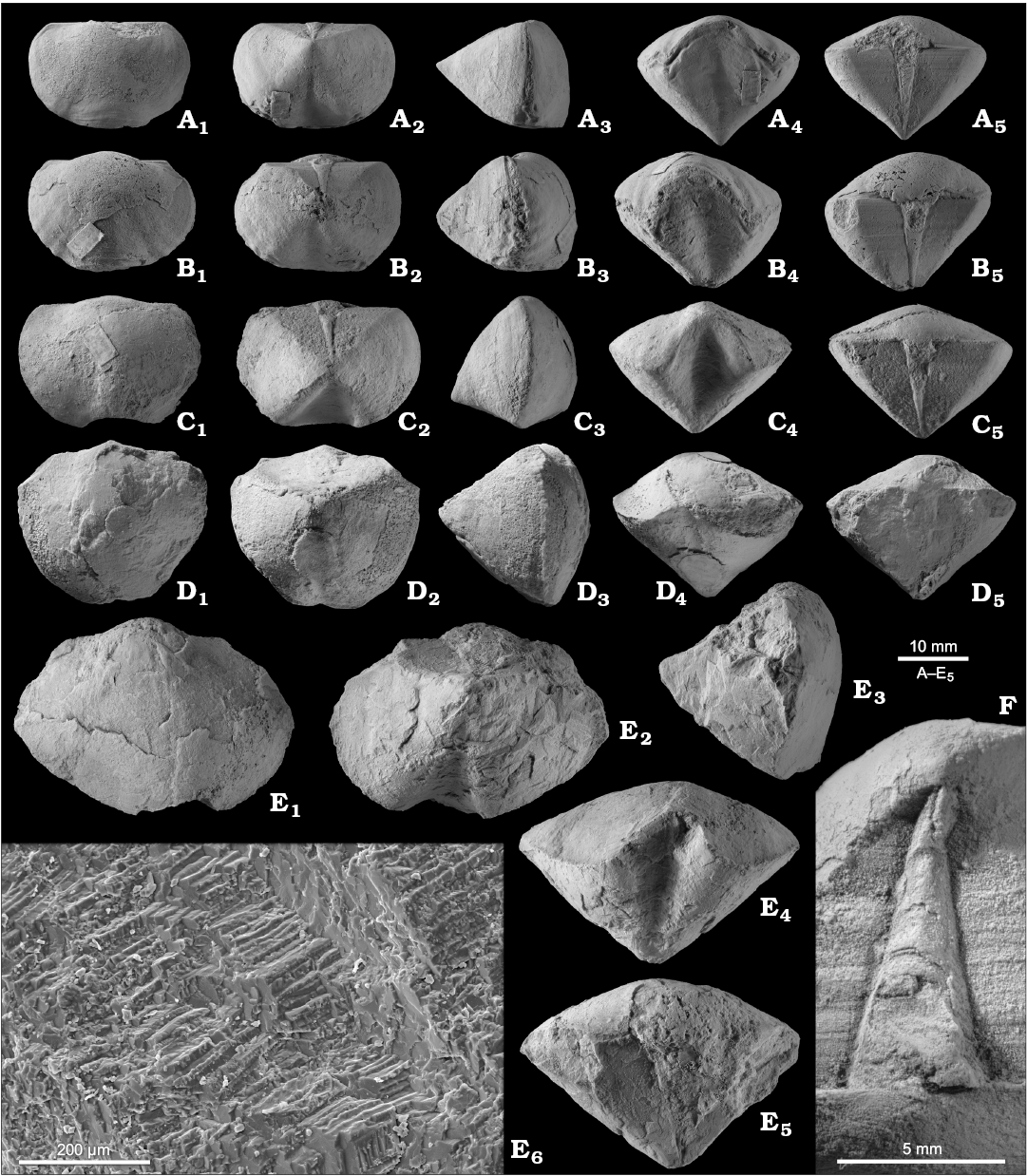

Fig. 2. Spiriferide brachiopod Thomasaria simplex (Phillips, 1841) from the Middle Devonian of south-western England, UK (type region). AC. Articulated shells (TCD 16991c, A; TCD 16991b, B; TCD 16991a, C) from Port Stephens, in dorsal (A1–C1), ventral (A2–C2), lateral (A3–C3), anterior (A4–C4), and posterior (A5–C5) views. D. Lectotype, articulated shell GSM 6915 from Wolborough, in dorsal (D1), ventral (D2), lateral (D3), anterior (D4), and posterior (D5) views. Reproduced with the permission of the British Geological Survey ©UKRI. All rights reserved. E. Topotype, articulated shell NHMUK PI B 2807 (specimen serially sectioned, see Fig. 3) from Wolborough, in dorsal (E1), ventral (E2), lateral (E3), anterior (E4), and posterior (E5) views, enlargement (SEM micrograph) of the secondary shell layer showing impunctate condition (E6). F. Articulated shell TCD 16991d from Port Stephens, fragmentary posterior view showing the delthyrium partially closed by a convex pseudodeltidium.


García-Alcalde (2010: 58) suggested the following dif­ferences between Pyramidalia and Thomasaria warrant distinction at genus level: (i) symphytium lacking in Thoma­saria, present in Pyramidalia; (ii) crural plates lacking in Thomasaria, present in Pyramidalia; (iii) cardinal angles acute or right-angled in Thomasaria, rounded in Pyramidalia; (iv) dental plates in Thomasaria longer than in Pyramidalia.

As a matter of fact, the above-mentioned differences are either nonexistent or insufficient for distinction at genus level.

(i) A pair of conjunct apical plates fused with the bases of the dental plates umbonally and extending below the level of interarea is present in Thomasaria altumbona (Johnson 2006). Cooper and Dutro (1982: pl. 35: 2–3) showed that in T. altumbona there is also a pair of convex plates rising from lateral edges of the delthyrium. This strongly suggests that a convex pseudodeltidium (symphytium sensu García-Alcalde 2010) covering the delthyrial opening was present at least in adult-gerontic shells.

(ii) Inner socket ridges are present in both Thomasaria and Pyramidalia (see Fig. 3B for the former and Cooper and Dutro 1982: pl. 43: 6–7 for the latter). García-Alcalde (2010) misinterpreted the inner socket ridges in Pyramidalia palentina García-Alcade, 2010 from the Givetian of the Asturias as crural plates (crural plates are defined as being in contact with the valve floor, which is not the case in any of the referred brachiopods).

(iii) The position of the maximal width and, in consequence, the form of postero-lateral extremities are subject to ontogenetic (compare Halamski and Baliński 2013: fig. 36A, C, H) and intraspecific (compare Fig. 2A1–D1) variability.

(iv) Such a difference is not significant for a distinction at genus level (compare Stainbrook 1945: fig. 2.14A–C; Fig. 3A).

Brachiopods presumably belonging to Thomasaria were reported under various generic names (including Pyra­mi­dalia) from Europe: south-western England (Phillips 1841; Webby 1964); Eifel, Germany (Schnur 1853–1854); Montagne Noire, France (Bergeron 1889; Brice 1985); Pyrenees, France (Joseph et al. 1980); Ardennes, Belgium (Mottequin 2008); Holy Cross Mountains and Dębnik Anticline, Poland (Gürich 1896; Sobolew 1909; Biernat 1966; Baliński 1979, 2006); Cantabrian Mountains, Spain (van Loevezijn 1986; García-Alcalde 2010); Asia: central Asia (Nalivkin 1930); China (Hou 1963); Urals (Tschernyschew 1887; Skompski et al. 2001); Timan (Oleneva 2006); Cau­casus (Alekseeva et al. 2018); Afghanistan (Brice 1971); Iran (Brock and Yazdi 2000); North America: Iowa, USA (Stainbrook 1945); New Mexico, USA (Cooper and Dutro 1982), Alaska, USA (Nilsen et al. 1980); Alberta, Canada (Warren and Stelck 1956; MacKenzie 1965); District of Mackenzie, Canada (McLaren et al. 1962); and Africa: Anti-Atlas, Morocco (Halamski and Baliński 2013).

Stratigraphic and geographic range.—Middle to Late Devo­nian (Eifelian?, Givetian to Frasnian). The presence of Tho­masaria in the Eifelian stage of its type region is probable, but has not been proved conclusively. Data provided by Schnur (1851, 1853–1854) are equivocal due to imprecise stratigraphy and uncertain taxonomy (the identification of Spirifer simplex given by Schnur 1851: 12 was considered doubtful by Schnur 1853–1854: 208; Spirifer pyramidalis is from the Frasnian of Büdesheim, see e.g., Korn et al. 2013 for the age; the identification of Spirifer nudus is considered uncertain by Schnur 1853–1854). The report from the upper Eifelian of Skały in the Holy Cross Mountains by Halamski and Zapalski (2006: 147) is based on a misquotation of Biernat’s material coming from the Givetian of Miłoszów and should be excluded. The age of Pyramidalia paoshanensis Hou, 1963 from South China is given as “Eifelian (?)” (Hou 1963: 425).

Thomasaria simplex (Phillips, 1841)

Figs. 2, 3.

1841 Spirifera simplex; Phillips 1841: 71; pl. 29: 124αa–d; pl. 60: 124α.

1864 Spirifera simplex, Phillips; Davidson 1864: 46; pl. 6: 18–22.

1893 Spirifera simplex, Phillips; Whidborne 1893: 109.

1913 Spirifera simplex Phill.; Ussher 1913: 22.

non 1930 Reticularia (Eoreticularia) simplex Phillips; Nalivkin 1930: 133–134; pl. 10: 5 [= Thomasaria rotunda Oleneva, 2006].

non 1947 Pyramidalia simplex Phillips, 1841; Nalivkin 1947: 124–125; pl. 31: 4 [= Thomasaria rotunda Oleneva, 2006].

1966 Pyramidalia simplex (Phillips); House and Selwood 1966: 54; pl. 2: 8–9.

Lectotype (selected herein): Articulated shell GSM 6915 (coll. Austen), illustrated by Phillips (1841: pl. 60: 124α), re-illustrated by House and Selwood (1966: pl. 2: 8, 9) and herein (Fig. 2D).

Type locality: Wolborough quarry (SX 8522 7047), on the east side of the A381, east of Wolborough church, on the southwest outskirts of Newton Abbot, Devon, England, UK (House 2002: 281).

Type horizon: East Ogwell Limestone; Givetian, Maenioceras mola­rium Zone (House 2002: 288–289).

Material.—Wolborough: GSM 6916, GSM 50930, GSM 50931 (possible paralectotypes; coll. Austen), NHMUK PI B 2807 (coll. Lee), B 22089 (coll. Vicary). Lummaton: NHMUK PI B 9144 (coll. Pengelly), SM H2521–2525 (coll. Whidborne). Torquay: NHMUK PI B 7320 (coll. Davidson). Port Stephens: TCD 16991a–e (collector unknown). Probably all Givetian, England, UK.

Description.—Shell pyramidal, (thickness-to-length ratio usually about 0.9–1.1), strongly ventribiconvex (ventral valve ca. 2.5–4 times as thick as the dorsal one), variably transverse (width-to-length ratio 1.15 in the lectotype, but 1.79 in the topotypic specimen GSM 6916; Table 1). Maximal observed width ca. 44 mm (estimated on the basis of the subcomplete ventral valve GSM 6916). Hinge line straight. Cardinal extremities most often feebly angular forming a wide angle with rounded lateral margins. Anterior margin straight to indented. Maximal width usually slightly anteriorly to the mid-length of the dorsal valve. Dorsal valve weakly to distinctly convex; fold none to distinct; interarea very low, approximately orthocline. Ventral valve strongly convex, subpyramidal, rarely with slightly twisted umbo; interarea very high, laterally bordered by delicate but sharp extremities, narrower than the total shell width, attaining about three quarters of the latter, most often procline, more seldom apsacline, concave, flat or weakly convex (Fig. 2C3), with growth striation parallel to the hinge line; delthyrium well developed, with delthyrial angle 15–19°, its width up to about one fifth of that of the shell; four of six investigated shells show delthyrium closed for most of its height by a convex pseudodeltidium (Fig. 2A5, B5, C5, F). Anterior commissure uniplicate to weakly parasulcate. Ornamentation either none or consisting of low, rounded, often hardly discernible costae, 1–2(–3) per valve. Micro-ornamentation poorly preserved, consisting of regularly spaced faint concentric growth lines with density 10 lines per 1 mm.

Interior of the shell was studied by serial sections of a single, slightly incomplete and deformed topotypic shell NHMUK PI B 2807 shown in Fig. 2E.


Table 1. Measurements (in mm) of selected specimens. 1 lectotype, 2 specimens from the restricted type locality and stratum, 3 specimens from south-western England.


Shell

Width of

Thickness of valve

width

length

thickness

tongue

delthyrium (maximum)

interarea

dorsal

ventral

GSM 69151

26.7

23.2

20.9

12.4

6.2

4.0

16.9

GSM 69162

≈44

26.0

?

8.9

≈30

15.8

GSM 509312

23.2

12.9

13.9

12.7

NHM B.28072

≈41

26.5

13.3

30.4

7.0

19.5

NHM B.220892

22.2

15.6

14.8

NHM B.73203

18.5

12.7

10.4

NHM B.91443

28.4

17.5

22.0

TCD 16991a3

26.1

24.2

18.9

11.9

3.9

20.2

5.9

13.0

TCD 16991b3

23.9

15.8

19.0

13.2

4.8

18.5

4.0

15.0

TCD 16991c3

23.0

15.3

17.9

12.8

2.7

15.8

4.0

13.9


Ventral valve (Fig. 3A): dental plates strongly divergent at about 80° toward the floor of the valve and in contact with the valve floor on a length of 2.8 mm, then extending anteriorly as high dental ridges on the inner edges of the delthyrium; in the umbo bases of the dental plates fused and thus occluding the apical region of the delthyrium; other features of the internal structure of the valve not preserved.

Dorsal valve (Fig. 3B): cardinal process not preserved in the sectioned specimen; sockets bordered by inner socket ridges coalescent with crural bases and thus forming concave, subvertical plates; crural blades slightly concave ventrally and subparallel to the valve floor; crural plates not developed; spiralium broken and displaced, so only some of the whorls are visible on the serial sections.

Shell substance impunctate (see SEM micrograph on Fig. 2E6 taken from a fragment of the shell NHMUK PI B 2807).

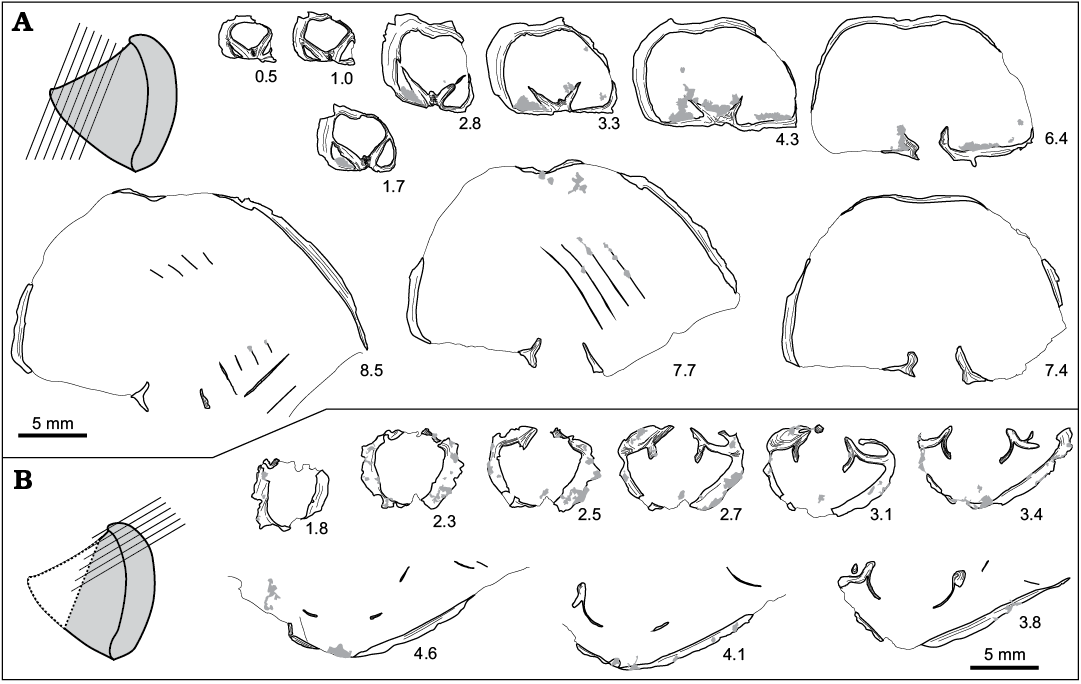

Fig. 3. Transverse serial sections of spiriferide brachiopod Thomasaria simplex (Phillips, 1841) through shell NHMUK PI B 2807 (topotype) from the Givetian of Wolborough, England, UK. Sections through ventral (A) and dorsal (B) valves. The schematic drawings on the left of each section describe the direction of sectioning (see text). Distances measured in millimetres from the tip of the ventral and dorsal umbos, respectively. Gray areas denote local silicification.

Remarks.—The type locality and horizon of Spirifera simplex were originally given as “[i]n South Devon: Plymouth; Newton” (Phillips 1841: 71) and “Plymouth Group” (Phillips 1841: 147), this unit being more inclusive than the Plymouth Limestone sensu House and Selwood (1966: 54, fig. 2). However, according to the Art. 76.2 of the ICZN, “the place of origin of the lectotype becomes the type locality of the nominal species-group taxon, despite any previously published statement of the type locality”, so the type locality and horizon of the discussed species are given as above as a consequence of the lectotype designation effectuated herein.

According to the original description, “the specimens, both at Plymouth and Newton, are entirely devoid of lateral radiating plaits” (Phillips 1841: 71). A similar observation was made by Whidborne (1893: 109): “there is no indication [of ribs] in any English specimens”. However, three faint rounded costae may be observed in NHMUK PI B 9144 and one or two faint costae in NHMUK PI B 7320. Moreover, smooth and costate individuals occur within a single sample (compare TCD 16991b, Fig. 2B and TCD 16991a, Fig. 2C). Variability in dorsal valve convexity, presence or absence of the fold, and the form and position of the interarea has been noted in the description.

Detailed comparison of Thomasaria simplex with other representatives of the genus is out of the scope of the present paper, but it may be briefly noted that T. altumbona (the type species of the genus) is much smaller in size and its dorsal fold is more distinct (Stainbrook 1945).

Stratigraphic and geographic range.—The synonymy of Spirifera simplex given above is limited to the type area sensu lato (south-western England) and to the works related to the problem of the genus Pyramidalia. The following discussion of localities is also limited to south-western England. Both Phillips (1841) and Davidson (1864) quote this species solely from Newton Bushel (= Wolborough) and Plymouth. According to museum labels, other localities include Torquay, Lummaton near Torquay, and “Port Stephens”. As there is no such place name as Port Stephens in south-western England, one may suppose it refers to St Stephens by Saltash situated just opposite Plymouth on the western side of the Tamar; St Stephen-in-Brannel near St Austell, and St Stephen-by-Launceston are less likely. Probably the age of all the above-­mentioned localities is Givetian. Whidborne (1893) seems right in qualifying this species as “rather rare”.

Methodological comments

Schrödl and Haszprunar (2016) proposed an amendment of the rules of the zoological nomenclature consisting in adopting a procedure similar to epitypification of the botanical nomenclature (ICN, Art. 9.8). An epitype (notion introduced in the botanical nomenclature by Greuter et al. 1994) is an additional specimen (i.e., not belonging to the original material; not necessarily topotypic) that can be introduced when “all original material associated with a (…) name is demonstrably ambiguous and cannot be critically identified for purposes of the precise application of the name to a taxon” (Turland 2013: 61). Problems related to epitypification were discussed by Hyde and Zhang (2008) who concluded advantages of this procedure were greater than disadvantages.

It is worth noting that the method adopted in the present work is much alike epitypification. The diagnostic characters of a brachiopod genus (anatomy, microstructure of the shell) could not be checked on specimens belonging to the type series, so a specimen which is most probably (but not beyond all doubts) topotypic has been selected and studied according to standard modern methods. It has thus become a de facto epitype. A comparable procedure is not unusual in palaeontology, so formalisation of such an approach by the ICZN seems desirable.

An example of a problem that might be easily solved if the notion of epitypes were inserted into the ICZN is the long-standing controversy on the well-known and widely reported Devonian brachiopod Athyris concentrica (von Buch, 1834). The type series of this species consists of brachiopods belonging to several genera, so Alvarez et al. (1996) selected a “neotype” conforming to the original description and possessing precise locality data. Grunt and Weyer (2002) were right in pointing out that a neotype cannot be selected unless any specimen belonging to the type series is unavailable (ICZN, Art. 75.1). However, Alvarez and Brunton (2005) responded that Grunt and Weyer (2002), when selecting a lectotype for the discussed species differing from the original description, acted against the Recommendation 74A of the ICZN in failing to “act consistently with (...) previously accepted taxonomic restrictions”. A detailed reply by Grunt and Weyer (2016) ended with the sentence “Finally this problem could be solved by the plenary power of the Commission of ICZN” (Grunt and Weyer 2016: 620). As of 2019, no consensus on this matter seems to have been reached. The possibility of designating the alleged neotype of Athyris concentrica as the interpretative epitype would be a simple solution satisfying both the formal requirements and the necessity of having a precisely localised reference specimen in order to restrict the application of the name. A universal solution probably does not exist, but epitypification may be recommended at least in some cases.

Conclusions

Spirifera simplex Phillips, 1841 is lectotypified with GSM 6915 as the lectotype. This specimen comes from the Givetian (upper Middle Devonian; Maenioceras molarium Zone) of Wolborough quarry near Newton Abbot (Devon). Internal characters and microstructure of the shell are studied on the specimen NHMUK PI B 2807 from the same quarry.

Spirifera simplex, the type species of Pyramidalia Naliv­kin, 1947, has an impunctate shell, next to other diagnostic characters of the order, wherefore it belongs to the order Spiriferida. The interpretation of Pyramidalia as a spiriferinide given in both editions of the Treatise of Invertebrate Paleontology—Brachiopoda, must thus be rejected.

Morphology and internal structures of Spirifera simplex do not show any significant differences from those of Thomasaria Stainbrook, 1945. Pyramidalia is confirmed as a junior subjective synonym of Thomasaria, as proposed first by Baliński (1979).

The procedure adopted in the present work is equivalent to epitypification in use under the ICN. Such a modus operandi is not rare in palaeontology, so formalisation of this procedure under the ICZN seems desirable.

Acknowledgements

This study could not be completed without help of several collection curators and staff of the following institutions: Louise Neep, Paul J. Shepherd, and Simon J. Harris (all GSM); the late Howard Brunton, Sarah Long and Zoë Hughes (NHMUK); Patrick N. Wyse Jackson (TCD); Derek Siveter (OUMNH); Matt Riley (SM). Ulrich Jansen (Senckenberg, Frankfurt am Main, Germany) and an anonymous reviewer commented on an earlier version of the paper. The research was supported by the National Science Centre, Poland (grant 2016/23/B/ST10/02744 to AB).

References

Alekseeva, R.E., Afanasjeva, G.A., Grechishnikova, I.A., Oleneva, N.V., and Pakhnevich, A.V. 2018. Devonian and Carboniferous brachiopods and biostratigraphy of Transcaucasia (Ending). Paleontological Journal 52 (9): 1–117. Crossref

Alvarez, F. and Brunton, C.H.C. 2005. On the name-bearing type of Athyris concentrica (von Buch, 1834). Lethaia 38: 86–87. Crossref

Alvarez, F. and Rong, J.-Y. 2002. Athyridida. In: R.L. Kaesler (ed.), Treatise on Invertebrate Paleontology. Part H, Brachiopoda, Revised, Vol. 4: Rhynchonelliformea, 1475–1614. The Geological Society of America, Boulder and the University of Kansas, Lawrence. Crossref

Alvarez, F., Brunton, C.H.C., and Struve, W. 1996. On Athyris (Brachio­poda) and its type species “Terebratulaconcentrica von Buch. Senckenbergiana lethaea 76: 65–105. Crossref

Baliński, A. 1979. Brachiopods and conodonts from the Frasnian of the Dębnik Anticline, Southern Poland. Palaeontologia Polonica 39: 3–95.

Baliński, A. 2006. Brachiopods and their response to the Early–Middle Frasnian biogeochemical perturbations on the South Polish carbonate shelf. Acta Palaeontologica Polonica 51: 647–678.

Bergeron, J. 1889. Étude géologique du massif ancien situé au sud du Plateau central. 361 pp. G. Masson, Paris.

Biernat, G. 1966. Middle Devonian brachiopods of the Bodzentyn Syncline (Holy Cross Mountains, Poland). Palaeontologia Polonica 17: 1–162.

Boase, G.C. 1890. Godwin-Austen, Robert Albert Cloyne. In: L. Stephen and S. Lee (eds.), Dictionary of National Biography. Vol. 22, Glover —Gravet, 68–69. Smith, Elder & Co., London.

Bonne, T.H. 1896. Phillips, John. In: S. Lee (ed.), Dictionary of National Biography. Vol. 45, Pereira—Pockrich, 207–208. Smith, Elder & Co., London.

Boucot, A.J., Johnson, J.G., Pitrat, C.W., and Stanton, R.D. 1965. Spiri­ferida. In: R.C. Moore (ed.), Treatise on Invertebrate Paleontology. Part H, Brachiopoda, Vol. 2, H632–H728. The Geological Society of America, Boulder and the University of Kansas, Lawrence. Crossref

Brice, D. 1971. Etude paléontologique et stratigraphique du Dévonien de l’Afghanistan. Notes et Mémoires sur le Moyen-Orient 11: 1–364.

Brice, D. 1985. Brachiopodes de La Serre (sud de Cabrières, Montagne Noire) près de la limite Dévonien moyen–Dévonien supérieur. Hercy­nica 1: 131–154.

British Geological Survey 1957. Geological Map of Great Britain. Sheet 2: England & Wales (South of National Grid Line 500 km N), Scale 1/625 000. 2nd Edition. Ordnance Survey, Chessington.

Brock, G.A. and Yazdi, M. 2000. Palaeobiogeographic affinities of Late Devonian brachiopods from Iran. Records of the Western Australian Museum, Supplement 58: 321–334.

von Buch, L. 1834. Über Terebrateln, mit einem Versuch, sie zu classificiren und zu beschreiben. Eine in der Königliche Akademie der Wissenschaften gelesene Abhandlung. 124 pp. Druckerei der Königlichen Akademie der Wissenschaften, Berlin.

Carter, J.L., Johnson, J.G., Gourvennec, R., and Hou, H.-F. 1994. A revised classification of the spiriferid brachiopods. Annals of Carne­gie Museum 63: 327–374.

Cooper, G.A. and Dutro, J.T. Jr. 1982. Devonian brachiopods of New Mexico. Bulletins of American Paleontology 82–83: 1–215.

Copper, P. 1965. Unusual structures in Devonian Atrypidae from England. Palaeontology 8: 358–373.

Davidson, T. 1864. A monograph of British Devonian Brachiopoda. Part VI, first portion. Palaeontographical Society Monographs 16 (68): 1–56. Crossref

Day, J. and Witzke, B.J. 2017. Upper Devonian biostratigraphy, event strati­graphy, and Late Frasnian Kellwasser extinction bioevents in the Iowa Basin: Western Euramerica. In: M. Montenari (ed.), Advances in Sequence Stratigraphy, Volume 2, 243–332. Academic Press, Cambridge.

Drot, J. 1964. Rhynchonelloidea et Spiriferoidea siluro-dévoniens du Maroc pré-saharien. Notes et Mémoires du Service géologique du Maroc 178: 1–287.

Duméril, A.-M.C. 1805 [1806]. Zoologie analytique, ou méthode natu­relle de classification des animaux, rendue plus facile à l’aide de tableaux synoptiques. 344 pp. Allais, Paris. Crossref

Franke, W. 2000. The mid-European segment of the Variscides: tectono­stratigraphic units, terrane boundaries and plate tectonic evolution. In: W. Franke, V. Haak, O. Oncken, and D. Tanner (eds.), Orogenic Processes: Quantification and Modelling in the Variscan Belt. Geological Society of London, Special Publications 179: 35–61. Crossref

Fredericks, G.N. [Frederiks, G.N.] 1911. Bemerkung über einige oberpalaeozoische Fossilien von Krasnoufimsk [in Russian, with German summary]. Priloženìe k protokolam Zasědanìj Obŝestva Estestvoispytatelej pri Imperatorskom Kazanskom Universitetě 42 (269): 1–12.

Fredericks, G.N. [Frederiks, G.N.] 1916. The palaeontological notes. 2. On some upper Palaeozoic Brachiopoda of Eurasia [in Russian]. Mémoires du Comité Géologique, nouvelle série 156: 1–87.

Fredericks, G.N. [Frederiks, G.N.] 1924. Paleontological Notes. 2. On Upper Carboniferous spiriferids from the Urals [in Russian]. Izvestiâ Geologičeskogo Komiteta 38: 295– 324.

García-Alcalde, J.L. 2010. Givetian brachiopod faunas of the Palentian Domain (N Spain). Revista Española de Paleontología 25: 43–69.

George, T.N. 1931. Ambocoelia Hall and certain similar British Spiriferidae. Geological Society of London, Quarterly Journal 87: 30–61. Crossref

Grabau, A.W. 1931. The Brachiopoda, Part 2. Studies for students, I. Palaeontology. Science Quarterly of the National University of Peking 2: 235–254, 397–422.

Greuter, W., Barrie, F.R., Burdet, H.M., Chaloner, W.G., Demoulin, V., Hawksworth, D.L., Jørgensen, P.M., Nicolson, D.H., Silva, P.C., Tre­hane, P., and McNeill, J. (eds.) 1994. International Code of Botanical Nomenclature (Tokyo Code): Adopted by the Fifteenth International Botanical Congress, Yokohama, August–September 1993. Regnum Vegetabile no. 131. xviii + 389 pp. Koeltz Scientific Books, Königstein.

Grunt, T.A. and Weyer, D. 2002. Revision of Leopold von Buch’s type collection of athyridids from Berlin Museum of Natural History Paleontological Journal 36: 356–367.

Grunt, T.A. and Weyer, D. 2016. New data on some Middle Devonian Athy­ridida (Brachiopoda) from the Rhenish Massif, Germany. Palaeoworld 25: 616–631. Crossref

Gürich, G. 1896. Das Palaeozoicum im polnischen Mittelgebirge. Verhandlungen der Russisch-Kaiserlichen mineralogischen Gesellschaft zu Sankt-­Petersburg 32: 1–539.

Halamski, A.T. and Baliński, A. 2013. Middle Devonian brachiopods from the southern Maïder (eastern Anti-Atlas, Morocco). Annales Societatis Geologorum Poloniae 83: 243–307.

Halamski, A.T. and Zapalski, M.K. 2006. Les schistes à brachiopodes de Skały – un niveau exceptionnel. Première partie: Inventaire faunistique. Bulletin mensuel de la Société linnéenne de Lyon 75: 145–150. Crossref

Hou, H. 1959. Lower Devonian and Eifelian spiriferid brachiopods from southern Guangxi [in Chinese, Russian and English summaries]. Acta Palaeontologica Sinica 7: 450–462.

Hou, H. 1963. Some new Middle Devonian brachiopods from the provinces Guangxi and Yunnan [in Chinese, Russian summary]. Acta Palaeontologica Sinica 11: 412–432.

Hou, H., Chen, X., Rong, J., Ma, X., Zhang, Y., Xu, H., Su, Y., Xian, S., and Zong, P. 2017. Devonian brachiopod genera on type species of China. In: J. Rong, Y. Jin, S. Shen, and R. Zhan (eds.), Phanerozoic Brachiopod Genera of China, 343–557. Science Press, Beijing.

House, M.R. 2002. Devonian (Givetian) goniatites from Wolborough, Barton and Lummaton, South Devon. Geoscience in south-west England 10: 281–292.

House, M.R. and Selwood, E.B. 1966 [1964]. Palaeozoic palaeonto­logy in Devon and Cornwall. In: K.F.G. Hosking and G.J. Shrimpton (eds.), Present Views on Some Aspects of the Geology of Cornwall and ­Devon: a Series of Papers Compiled to Commemorate the 150th Anniversary of the Inauguration of the Royal Geological Society of Cornwall, 45–86. Oscar Blackford Ltd., Truro.

Hyde, K.D. and Zhang, Y. 2008. Epitypification: should we epitypify? Journal of Zhejiang University, Science, B 9: 842–846. Crossref

Ivanova, E.A. 1959. On the systematics and evolution of the spiriferids (Brachiopoda) [in Russian]. Paleontologičeskij žurnal 1959 (4): 47–64.

Ivanova, E.A. 1960. Order Spiriferida [in Russian]. In: T.G. Saryčeva (ed.), Osnovy Paleontologii. Mšanki, Brahiopody, 264–280. Izdatel’stvo Aka­demii Nauk SSSR, Moscow.

Ivanova, E.A. 1962. Ecology and Development of Brachiopods from the Silurian and Devonian of Kuznetsk, Minusinsk, and Tuva Basins [in Russian]. Trudy Paleontologičeskogo Instituta 88: 1–152.

Ivanova, E.A. 1972. Main features of spiriferid evolution (Brachiopoda) [in Russian]. Paleontologičeskij žurnal 1972 (3): 28–42.

Johnson, J.G. 2006. Cyrtinoidea. In: R.L. Kaesler (ed.), Treatise on Invertebrate Paleontology. Part H, Brachiopoda, Revised, Volume 5: Rhynchonelliformea (part), 1881–1883. The Geological Society of America, Inc., Colorado and The University of Kansas, Lawrence.

Joseph, J., Brice, D., and Mouravieff, N. 1980. Données paléontologiques nouvelles sur le Frasnien des Pyrénées centrales et occidentales: Implications paléogéographiques. Bulletin de la Société d’Histoire naturelle de Toulouse 116: 16–41.

King, W. 1846. Remarks on certain genera belonging to the class Pallio­branchiata. Annals and Magazine of Natural History, London 18: 26–42, 83–94. Crossref

Korn, D., Bockwinkel, J., Ebbighausen, V., and Walton, S.A. 2013. Rare representatives in the ammonoid fauna from Büdesheim (Cephalopoda, Eifel, Late Devonian) and the role of heterochrony. Neues Jahrbuch für Geologie und Paläontologie, Abhandlungen 269: 111–124. Crossref

Leveridge, B. and Hartley, A.J. 2006. The Variscan Orogeny: the develop­ment and deformation of Devonian/Carboniferous basins in SW England and South Wales. In: P.J. Brenchley and P.F. Rawson (eds.), The Geology of England and Wales, 225–255. Geological Society of London, London. Crossref

Leveridge, B.E. and Shail, R.K. 2011. The marine Devonian stratigraphy of Great Britain. Proceedings of the Geologists’ Association 122: 540–567. Crossref

Ljaschenko, A.I. [Lâŝenko, A.I.] 1969. New Devonian Brachiopods from the Volga-Ural Oil-and-Gas-Bearing Province and the Ural Mountains [in Russian]. In: A.I. Lâŝenko, S.V. Semihatova, and V.S. Gubareva (eds.), Fauna i stratigrafiâ paleozoâ Russkoj platformy. Trudy VNIGNI 93: 32–48.

MacKenzie, W.S. 1965. Upper Devonian stratigraphy, Northwest margin of the Southesk reef, Eastern Rocky Mountains, Alberta. Geological Survey of Canada, Papers 64–19: i–iv, 1–94. Crossref

McLaren, D.J., Norris, A.W., and McGregor, D.C. 1962. Illustrations of Canadian fossils: Devonian of western Canada. Geological Survey of Canada, Papers 62 (4): 1–34. Crossref

M’Coy, F. 1844. A Synopsis of the Characters of the Carboniferous Limestone Fossils of Ireland. 207 pp. University Press, M.H. Gill, Dublin. Crossref

Mottequin, B. 2008. New observations on Upper Devonian brachiopods from the Namur-Dinant Basin (Belgium). Geodiversitas 30: 455–537.

Nalivkin, D. 1930. Brachiopods from the Upper and Middle Devonian of the Turkestan. Mémoires du Comité géologique, nouvelle série 180: 1–221.

Nalivkin, D. 1947. Class Brachiopoda [in Russian]. In: D.V. Nalivkin and V.N. Verber (eds.), Atlas rukovodâŝih form iskopaemyh faun SSSR, Tom 3, Devonskaâ sistema, 245 pp. Vsesoûznyj Naučno-Issledovatel’skij Geologičeskij Institut, Moskva­.

Nilsen, T.H., Moore, T.E., Dutro, J.T., Jr., Brosge, W.P., and Orchard, D.M. 1980. Sedimentology and stratigraphy of the Kanayut Conglomerate and associated units, Central and Eastern Brooks Range, Alaska—report of 1978 field season. United States Department of Interior, Geological Survey, Open-File Report 80-888: i–iii, 1–40. Crossref

Oleneva, N.V. 2006. Pyramidal spiriferids (brachiopods) from the Middle and Upper Devonian of the Russian Plate: morphology, systematics, and shell wall structure. Paleontological Journal 40: 415–424. Crossref

Pitrat, C.W. 1965. Spiriferidina. In: R.C. Moore (ed.), Treatise on Invertebrate Paleontology. Part H, Brachiopoda, 667–728. Geological Society of America, New York and University of Kansas Press, Lawrence.

Phillips, J. 1841. Figures and Descriptions of the Palæozoic Fossils of Corn­wall, Devon and West Somerset; Observed in the Course of the Ordnance Geological Survey of That District. 231 pp. Longman, Brown, Green & Longmans, London.

Sapelnikov, V.P. and Mizens, L.I. 2000. Brahiopody nižne- i srednedevonskih otloženij zapadnogo sklona Srednego Urala. 269 pp. Rossijskaâ Akademiâ Nauk, Uralskoe Otdelenie, Ekaterinburg.

Schnur, J. 1851. Die Brachiopoden aus dem Uebergangsgebirge der Eifel. In: Programm der vereinigten höhern Bürger- und Provinzial-Gewerbeschule zu Trier für das Schuljahr 1850–51 womit zu den am 29. und 30. August stattfindenden öffentlichen Prüfungen und der Schlußfeier. 16 pp. Fr. Lintz, Trier. Crossref

Schnur, J. 1853–1854. Zusamenstellung und Beschreibung sämmtlicher im Uebergangsgebirge der Eifel vorkommenden Brachiopoden, nebst Abbildungen derselben. Palaeontographica 3: 169–253. [Lfg. 4, 169–192, July 1853; Lfg. 5, 193–216, September 1853; Lfg. 6, 217–253, 1854].

Schrödl, M. and Haszprunar, G. 2016. Do we need epitypes in zoology? Spixiana 39: 199–201.

Scrutton, C.T. 1968. Colonial Phillipsastraeidae from the Devonian of south-­east Devon, England. Bulletin of the British Museum (Natural History), Geology 15: 181–281.

Selwood, E.B., Edwards, R.A., Simpson, S., Chesher, J.A., Hamblin, R.J.O., Henson, M.R., Riddolls, B.W., Waters, R.A., Hawkes, J.R., Bisson, G., Scrivener, R.C., Riddler, G.P., Matthews, S.C., Ramsbottom, W.H.C., Wood, C.J., and Edmonds, E.A. 1984. Geology of the Country Around Newton Abbot: Memoir for 1:50 000 Geological Sheet 339, New Series. xiv + 212 pp. Her Majesty’s Stationary Office, London.

Shail, R.K. and Leveridge, B.E. 2009. The Rhenohercynian passive margin of SW England: Development, inversion and extensional reactivation. Comptes Rendus Geoscience 341: 140–155. Crossref

Sherborn, C.D. 1922. Index Animalium sive Index nominum quae ab A.D. MDCCLVIII generibus et speciebus animalium imposita sunt. Sectio secunda, a Kalendis Ianuariis, MDCCCI usque ad finem Decembris, MDCCCL. Part I. Introduction, bibliography, and Index A–Aff. cxxxi + 128 pp. Printed by order of the Trustees of the British Museum, London.

Skompski, S., Paszkowski, M., Krobicki, M., Kokovin, K., Korn, D., Tomaâ, A., and Wrzołek, T. 2001. Depositional setting of the Devonian/Carboni­ferous biohermal Bol’shaya Nadota Carbonate Complex, Subpolar Urals. Acta Geologica Polonica 51: 217–235.

Sobolew, D. [Sobolev, D.] 1909. The Middle Devonian of the Kělce-Sandomir region [in Russian]. Materìaly dlâ geologìi Rossìi 24: 43–536.

Stainbrook, M.A. 1945. Brachiopoda of the Independence Shale of Iowa. Geological Society of America Memoir 14: 1–74. Crossref

Tschernyschew, T. 1887. Die Fauna des mittleren und oberen Devon am West-­Abhange des Urals. Mémoires du Comité géologique 3: 1–209.

Turland, N. 2013. The Code Decoded: A user’s guide to the International Code of Nomenclature for algae, fungi, and plants. Regnum vegetabile 155, 169 pp. Koeltz Scientific Books, Königstein.

Ussher, W.A.E. 1913. The geology of the country around Newton Abbot. Memoirs of the Geological Survey of England and Wales. iv + 149 pp. Darling & Son, Ltd., London.

van Loevezijn, G.B.S. 1986. Stratigraphy and facies of the Nocedo, Fueyo and Ermita formations (Upper Devonian to lowermost Carboniferous) in León, Ν Spain. Scripta Geologica 81: 1–116.

Vandercammen, A. 1956. Révision des Ambocoeliinae du Dévonien de la Belgique. Bulletin de l’Institut royal des Sciences naturelles de Belgique 32 (43): 1–51.

Vandercammen, A. 1957. Révision des Reticulariinae du Dévonien de la Belgique. 2. Genre Plectospirifer Grabau, 1931. Bulletin de l’Institut royal des Sciences naturelles de Belgique 33 (24): 1–23.

Waagen, W.H. 1883. Salt Range Fossils. I. Productus-Limestone Fossils. Geological Survey of India, Memoirs, Palaeontologia Indica (series 13) 4: 391–546.

Warren, P.S. and Stelck, C.R. 1956. Reference fossils of Canada, Part I: ­Devonian faunas of western Canada. Geological Association of Canada, Special Paper 1: 1–15.

Webby, B.D. 1961. A Middle Devonian inadunate crinoid from west Somer­set, England. Palaeontology 4: 538–541.

Webby, B.D. 1964. Devonian corals and brachiopods from the Brendon Hills, West Somerset. Palaeontology 7: 1–22.

Whidborne, G.F. 1893. A monograph of the Devonian fauna of the South of England, vol. 2, part 3. The fauna of the limestones of Lummaton, Wolborough, Chircombe Bridge, and Chudleigh. Palaeontographical Society (London), Monograph 47: 89–160. Crossref

Williams, A., Carlson, S.J., Brunton, C.H.C, Holmer, L.E., and Popov, L. 1996. A supra-ordinal classification of the Brachiopoda. Philosophical Transactions of the Royal Society of London, B—Biological Sciences 351: 1171–1193. Crossref

Yabe, H. and Hayasaka, I. 1920. Palaeontology of Southern China, Vol. 3. Geographical Research in China. 222 pp. Tokyo Geographical Society, Tokyo.

Ziegler, P.A. 1982. Geological Atlas of Western and Central Europe. 130 pp. Shell Internationale Petroleum Maatschappij B.V., The Hague.


Acta Palaeontol. Pol. 64 (2): 399–408, 2019

https://doi.org/10.4202/app.00603.2019
